How to make AI sentient in Unity, Part I

Today, I'd like to show you one way to grant sentience to your AI agent in Unity so it can T-800 the world...

Ok, not really. However, I'm going to guide you through an implementation of eyes and ears you can use for your NPCs, so they will be able to react when they see or hear a specific object in a scene, which is also pretty cool, right? :-)

In this Part I, we're going to see the base class Sense, and Eyes and Ears that inherit from it. We're also going to see how to take advantage of UnityAction to keep the implementations of senses and reactions nicely decoupled.

In the subsequent and final Part II, we're going to dive into the implementation of some actual reactive AI behavior and find out how to harness the power of a simple State pattern, which is enough if we don't plan any complex AI.

If you do plan to have a game with complex AI behavior, look for behavior trees, Goal Oriented Action Planning (GOAP), or Hierarchical Task Network (HTN).

I assume you have at least a basic understanding of Unity engine and C# programming language, though I tried to make this tutorial reasonably beginner-friendly. Feedback is always welcomed.

Before we'll continue, I encourage you to get the final example from GitHub and open it in Unity 2020.3.17f1, so you can see the parts of code I'll be describing in the context.

So if you're ready, without further ado, let's get started 🚀.

Detectable and PlayerController components

First, we don't want our AI to uncontrollably react on every GameObject in the scene, so we need to mark only the Player as detectable.

It can be achieved with Tags, for instance, but marking objects by adding a custom component gives us a possibility to store and pass some useful data.

In this example, it's the flag CanBeHear that is set by PlayerController only when a player is moving and unset when the player stays still. You can see in the hierarchy that both Detectable and PlayerController are attached to the Player object.

public class Detectable : MonoBehaviour
{
    public bool CanBeHear;
}

Detectable is a component that marks object as detectable and provides data related to detection.

As for the PlayerController, I'm not going to describe its implementation in much detail, it's very basic and not what we're focusing on in this post.

But notice how we set detectable.CanBeHear to true only if the verticalAxis is bigger than zero, in other words, only when the player is moving.

This player controller depends on the Detectable component, so it's a good practice to decorate the class with the RequireComponent attribute, just as you can see on the first line below.

[RequireComponent(typeof(Detectable))]
public class PlayerController : MonoBehaviour
{
    public float MoveSpeed = 6f;
    public float RotationSpeed = 100f;
<span class="hljs-keyword">private</span> Detectable detectable;

<span class="hljs-function"><span class="hljs-keyword">private</span> <span class="hljs-keyword">void</span> <span class="hljs-title">Start</span>()</span>
{
    detectable = GetComponent&#x3C;Detectable>();
}

<span class="hljs-function"><span class="hljs-keyword">private</span> <span class="hljs-keyword">void</span> <span class="hljs-title">Update</span>()</span>
{
    <span class="hljs-built_in">float</span> verticalAxis = Input.GetAxis(<span class="hljs-string">"Vertical"</span>);
    <span class="hljs-built_in">float</span> horizontalAxis = Input.GetAxis(<span class="hljs-string">"Horizontal"</span>);

    detectable.CanBeHear = verticalAxis > <span class="hljs-number">0f</span>;

    transform.Translate(Vector3.forward * verticalAxis * MoveSpeed * Time.deltaTime, Space.Self);
    transform.Rotate(Vector3.up * horizontalAxis * RotationSpeed * Time.deltaTime);
}

}

If you add in the Inspector to a GameObject a component with RequireComponent attributes, all components that are required will be added automatically. It also prevents you from accidentally removing components that other components depend on.

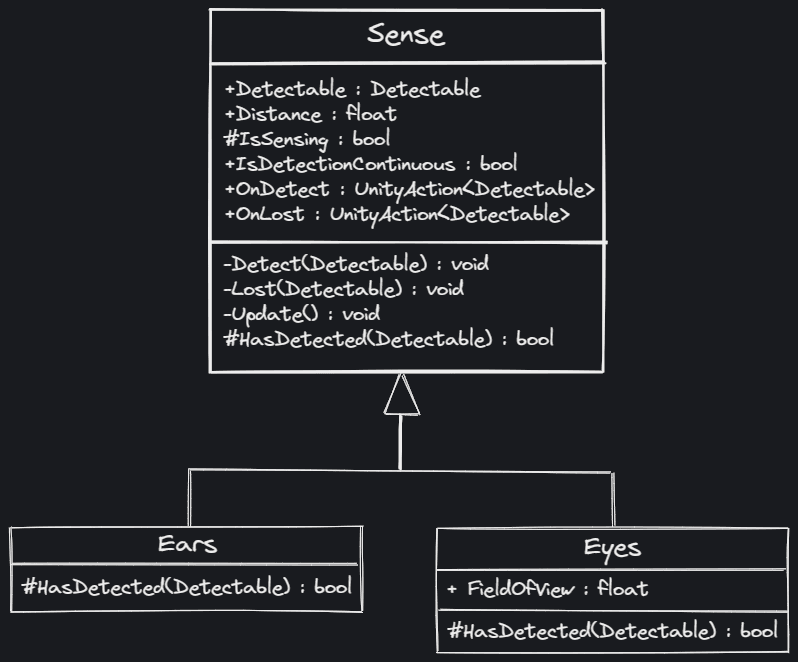

The base class Senses

Before we'll be talking about Eyes and Ears, let's point out that although they need to have a slightly different implementation, they both can share a fair bit of common logic.

using UnityEngine; using UnityEngine.Events;

public class Sense : MonoBehaviour { public Detectable Detectable; public float Distance;

<span class="hljs-keyword">protected</span> <span class="hljs-built_in">bool</span> IsSensing;

<span class="hljs-keyword">public</span> <span class="hljs-built_in">bool</span> IsDetectionContinuous = <span class="hljs-literal">true</span>;

<span class="hljs-keyword">public</span> UnityAction&#x3C;Detectable> OnDetect;
<span class="hljs-keyword">public</span> UnityAction&#x3C;Detectable> OnLost;

<span class="hljs-function"><span class="hljs-keyword">private</span> <span class="hljs-keyword">void</span> <span class="hljs-title">Detect</span>(<span class="hljs-params">Detectable detectable</span>)</span>
{
    IsSensing = <span class="hljs-literal">true</span>;
    OnDetect?.Invoke(detectable);
}
<span class="hljs-function"><span class="hljs-keyword">private</span> <span class="hljs-keyword">void</span> <span class="hljs-title">Lost</span>(<span class="hljs-params">Detectable detectable</span>)</span>
{
    IsSensing = <span class="hljs-literal">false</span>;
    OnLost?.Invoke(detectable);
}

<span class="hljs-function"><span class="hljs-keyword">void</span> <span class="hljs-title">Update</span>()</span>
{
    <span class="hljs-keyword">if</span> (IsSensing)
    {
        <span class="hljs-keyword">if</span> (!HasDetected(Detectable))
        {
            Lost(Detectable);
            <span class="hljs-keyword">return</span>;
        }

        <span class="hljs-keyword">if</span>(IsDetectionContinuous)
        {
            Detect(Detectable);
        }
    }
    <span class="hljs-keyword">else</span>
    {
        <span class="hljs-keyword">if</span> (!HasDetected(Detectable))
            <span class="hljs-keyword">return</span>;

        Detect(Detectable);
    }
}

<span class="hljs-function"><span class="hljs-keyword">protected</span> <span class="hljs-keyword">virtual</span> <span class="hljs-built_in">bool</span> <span class="hljs-title">HasDetected</span>(<span class="hljs-params">Detectable detectable</span>)</span> => <span class="hljs-literal">false</span>;

}

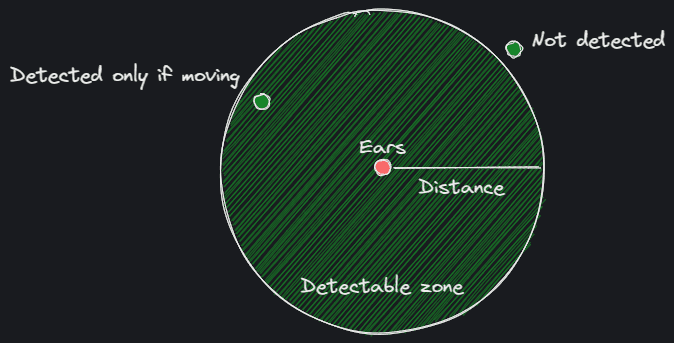

The Ears component

Sense { protected override bool HasDetected(Detectable detectable) { return Vector3.Distance(detectable.transform.position, transform.position) <= Distance && detectable.CanBeHear; } }

With Distance function provided by UnityEngine.Vector3 struct, our implementation of detection for ears is just a single line of code.

The Eyes component

using UnityEngine;

public class Eyes : Sense { [Range(0,180)] public float FieldOfView;

<span class="hljs-keyword">private</span> <span class="hljs-built_in">float</span> FieldOfViewDot;

<span class="hljs-function"><span class="hljs-keyword">void</span> <span class="hljs-title">Start</span>()</span>
{
    FieldOfViewDot = <span class="hljs-number">1</span> - Remap(FieldOfView * <span class="hljs-number">0.5f</span>, <span class="hljs-number">0</span>, <span class="hljs-number">90</span>, <span class="hljs-number">0</span>, <span class="hljs-number">1f</span>);
}

<span class="hljs-function"><span class="hljs-keyword">private</span> <span class="hljs-built_in">float</span> <span class="hljs-title">Remap</span>(<span class="hljs-params"><span class="hljs-built_in">float</span> <span class="hljs-keyword">value</span>, <span class="hljs-built_in">float</span> originalStart, <span class="hljs-built_in">float</span> originalEnd, <span class="hljs-built_in">float</span> targetStart, <span class="hljs-built_in">float</span> targetEnd</span>)</span>
{
    <span class="hljs-keyword">return</span> targetStart + (<span class="hljs-keyword">value</span> - originalStart) * (targetEnd - targetStart) / (originalEnd - originalStart);
}

<span class="hljs-function"><span class="hljs-keyword">protected</span> <span class="hljs-keyword">override</span> <span class="hljs-built_in">bool</span> <span class="hljs-title">HasDetected</span>(<span class="hljs-params">Detectable detectable</span>)</span>
{
    <span class="hljs-keyword">return</span> IsInVisibleArea(detectable) &#x26;&#x26; IsNotOccluded(detectable);
}

<span class="hljs-function"><span class="hljs-keyword">private</span> <span class="hljs-built_in">bool</span> <span class="hljs-title">IsInVisibleArea</span>(<span class="hljs-params">Detectable detectable</span>)</span>
{
    <span class="hljs-built_in">float</span> distance = Vector3.Distance(detectable.transform.position,

    <span class="hljs-keyword">return</span> distance &#x3C;= Distance &#x26;&#x26; Vector3.Dot(Direction(detectable.transform.position, <span class="hljs-keyword">this</span>.transform.position), <span class="hljs-keyword">this</span>.transform.forward) >= FieldOfViewDot;
}

<span class="hljs-function"><span class="hljs-keyword">private</span> Vector3 <span class="hljs-title">Direction</span>(<span class="hljs-params">Vector3 <span class="hljs-keyword">from</span>, Vector3 to</span>)</span>
{
    <span class="hljs-keyword">return</span> (<span class="hljs-keyword">from</span> - to).normalized;
}

<span class="hljs-function"><span class="hljs-keyword">private</span> <span class="hljs-built_in">bool</span> <span class="hljs-title">IsNotOccluded</span>(<span class="hljs-params">Detectable detectable</span>)</span>
{
    <span class="hljs-keyword">if</span> (Physics.Raycast(transform.position, detectable.transform.position - transform.position, <span class="hljs-keyword">out</span> RaycastHit hit, Distance))
    {
        <span class="hljs-keyword">return</span> hit.collider.gameObject.Equals(detectable.gameObject);
    }

    <span class="hljs-keyword">return</span> <span class="hljs-literal">false</span>;
}

}When you have compound conditions like this with && between them, sort them so they start from left with the simplest one. This way you'll save some cycles, because, since the first false condition, the others don't matter and won't be executed.

As you can see, HasDetected method is still a one-liner, but both IsInVisibleArea and IsNotOcclued methods need to be implemented by us.

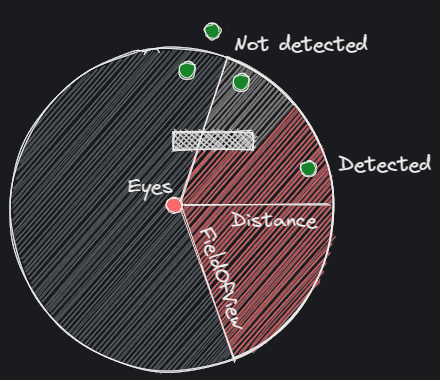

In the IsInVisibleArea method, we have the same test as in the Ears component to find out, whether a detectable is in the visible distance and we also test if the detectable is inside the field of view.

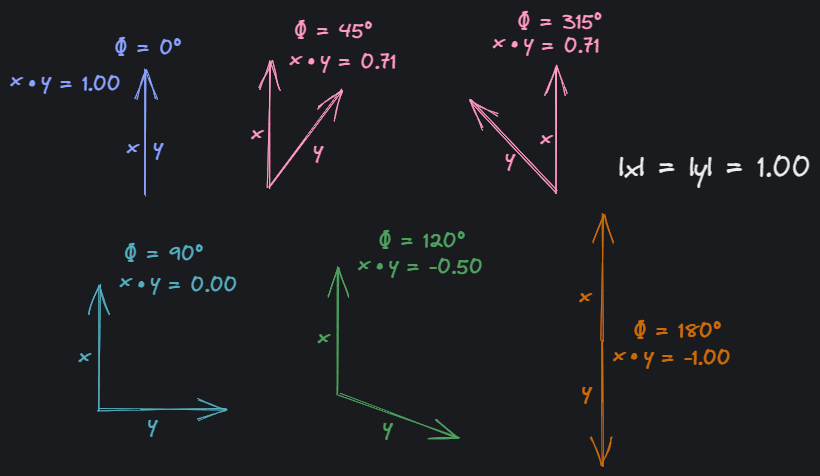

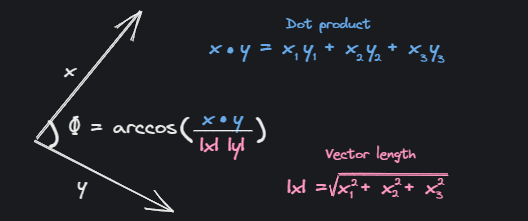

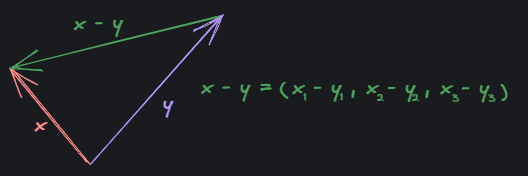

To figure it out, we need direction between detectable and eyes, which we get simply by vector subtraction. Then we calculate the dot product between normalized direction and forward vector of Eyes (which is also a unit vector).

Objects in the Ignore Raycast layer are ignored by Physics Raycast by default.

Having more than one detectable object would be a bit tricky, but one reasonable approach would be, instead of adding complexity to senses, creating another layer that would provide detectable from a pool of detectables on runtime. This way, there will be still only one detectable associated with a set of senses at a time and implementation of senses would stay intact.

That's it for today. I hope you've enjoyed it. If so, stay tuned for Part II, where we're going to dissect the implementation of an AI controller and behaviors like patrol between points, chase player, and investigate location.
